Large Size Pouch Packing Machine

Model: FFS1KGAUTO

In Stock (10)

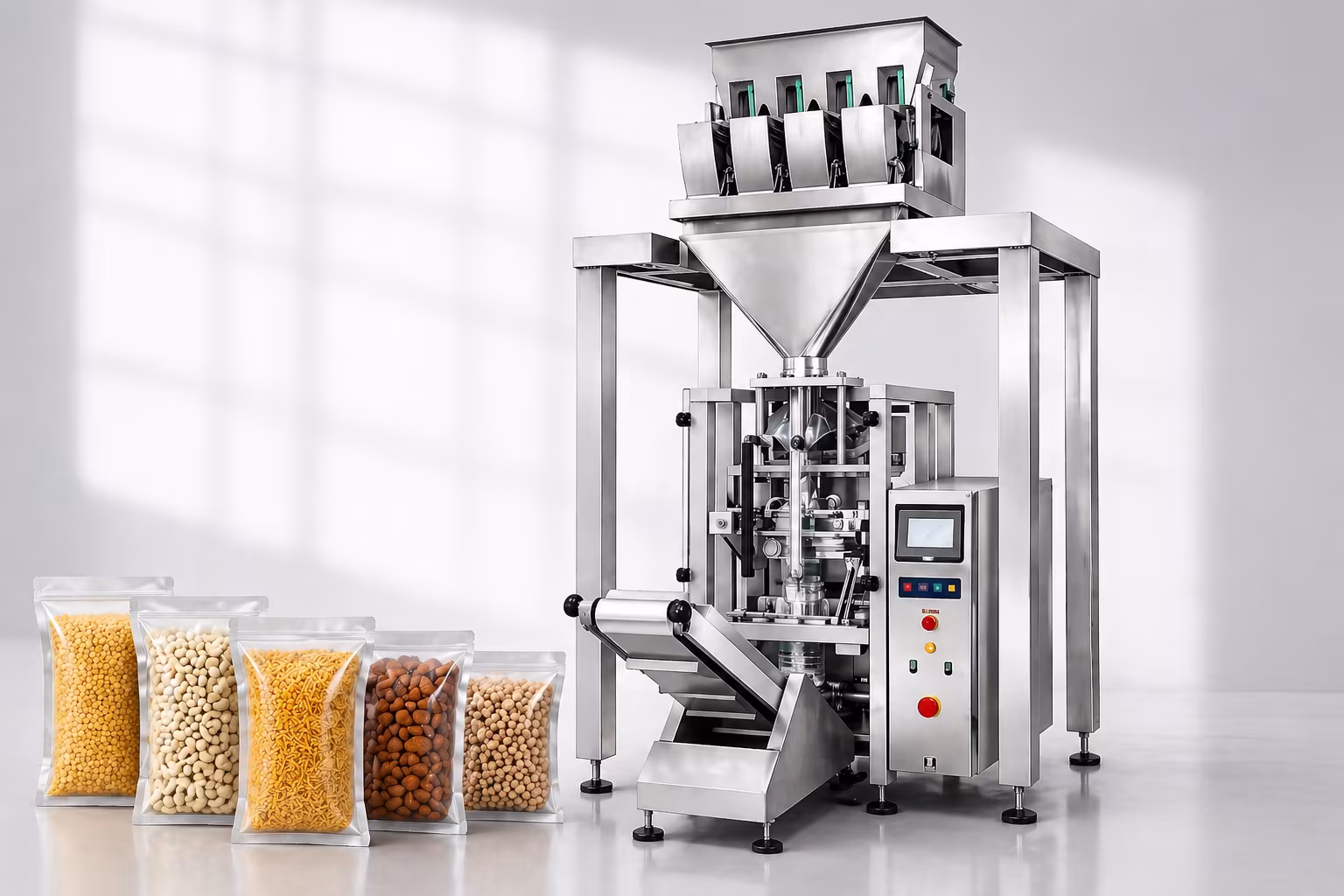

Large Size Pouch Packing Machine

Crinfly Ecosystem offers high-performance collar-type pouch packing machines designed for accurate filling and reliable sealing. Equipped with a 10-head weigher, PLC control, and photo sensor for precise cutting, it ensures consistent and efficient packaging. Ideal for various products with optional batch coding support.

Base Price ₹800,000
₹800,000 + GST
Machine Type

Pneumatic FFS

Speed

Up to 30 PPM

Accuracy

10 Head Weigher + PLC Control

Sealing System

Hot Bar with Digital Temperature Control

Cutting Precision

Photo Sensor (Photo Dot Control)

Advanced Features

Nitrogen Flushing & Batch Coding (Optional)

Product Overview

Crinfly Ecosystem deals in a wide range of advanced packaging machines and material handling equipment designed for efficient and reliable industrial operations.

This collar-type pouch packing machine uses a lay-flat film roll, which is formed into pouches through a forming collar system. Vertical sealing is performed by top sealing rollers, while horizontal sealing and cutting are done at the bottom using hot bar sealing technology. A digital temperature controller on the front panel ensures precise heat control for consistent sealing quality.

The machine is equipped with a 10-head multihead weigher for accurate and high-speed filling, supported by a PLC system for precise weight control. A photoelectric sensor (photo dot control) ensures accurate pouch cutting and positioning. Optional batch coding can also be integrated for printing manufacturing details directly on the pouch.

Designed for high performance and reliability, this machine is ideal for packaging a wide variety of products with precision and efficiency.

Key Features

Forming System

Forming System: Collar Type Pouch Formation

Sealing Type

Sealing Type: Hot Bar Sealing with Digital Temperature Control

Control System

Control System: PLC Based Operation

Filling System

Filling System: 10 Head Multihead Weigher

Cutting System

Cutting System: Photo Sensor (Photo Dot Control)

Batch Coding

Batch Coding: Optional In-Line Printing

Machine in Action

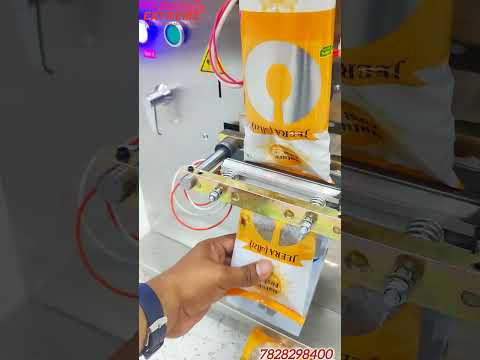

Machine Video

Tech Specs

Packaging Range Upto 1kg
Machine Type Pneumatic FFS
Filling System Weigh Filler
Sealing Type Center Seal
Packaging Speed Upto 30 PPM
Power Consumption Upto 2 kW
Contact Parts Material SS 304
Pouch Format Pillow Pouch
Features Outfeed Conveyor, Z-Type Elevator, Pouch Counter, Nitrogen Flushing, Batch Coding

Associated Categories & Tags

Automatic Pouch Packing Machine Collar Type Pouch Packing Machine FFS Machine Form Fill Seal Machine Pneumatic FFS Machine Multihead Weigher Packing Machine 10 Head Weigher Machine Snacks Packing Machine Namkeen Packing Machine Dry Fruits Packing Machine Granules Packing Machine Food Packaging Machine Industrial Packaging Machine Pillow Pouch Packing Machine Center Seal Pouch Machine PLC Controlled Packing Machine High Speed Packing Machine Weigh Filler Machine Batch Coding Packing Machine Nitrogen Flushing Packing Machine Packaging Machinery India Packaging Machine Manufacturer Crinfly Ecosystem

Frequently Asked Questions

Technical details and operational queries regarding this machine.

What is a Collar Type Pouch Packing Machine?

It is an automatic machine that forms pouches from roll film, fills products, and seals them using a collar forming system.

What products can be packed in this machine?

It can pack powders, granules, snacks, dry fruits, and other solid or semi-solid products using a suitable filling system.

What type of sealing is used?

The machine uses hot bar sealing with digital temperature control for strong and consistent seals.

How does the machine ensure accurate filling?

It uses a 10-head multihead weigher combined with a PLC system for precise weight control.

What is photo sensor (photo dot) control?

It is a system that detects printed marks on the film to ensure accurate pouch cutting and alignment.

Is batch coding available in the machine?

Yes, batch coding is available as an optional feature for printing manufacturing details on the pouch.
